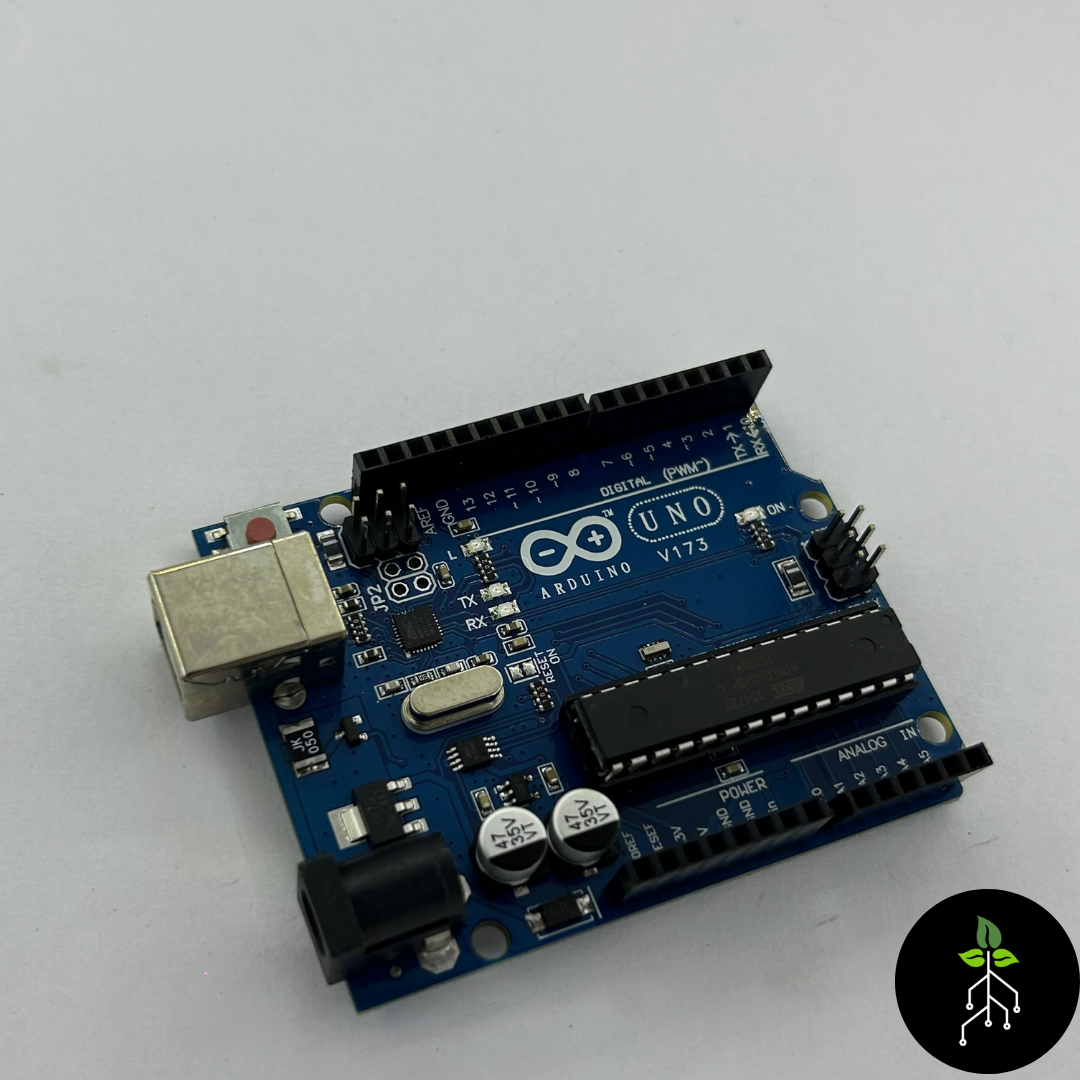

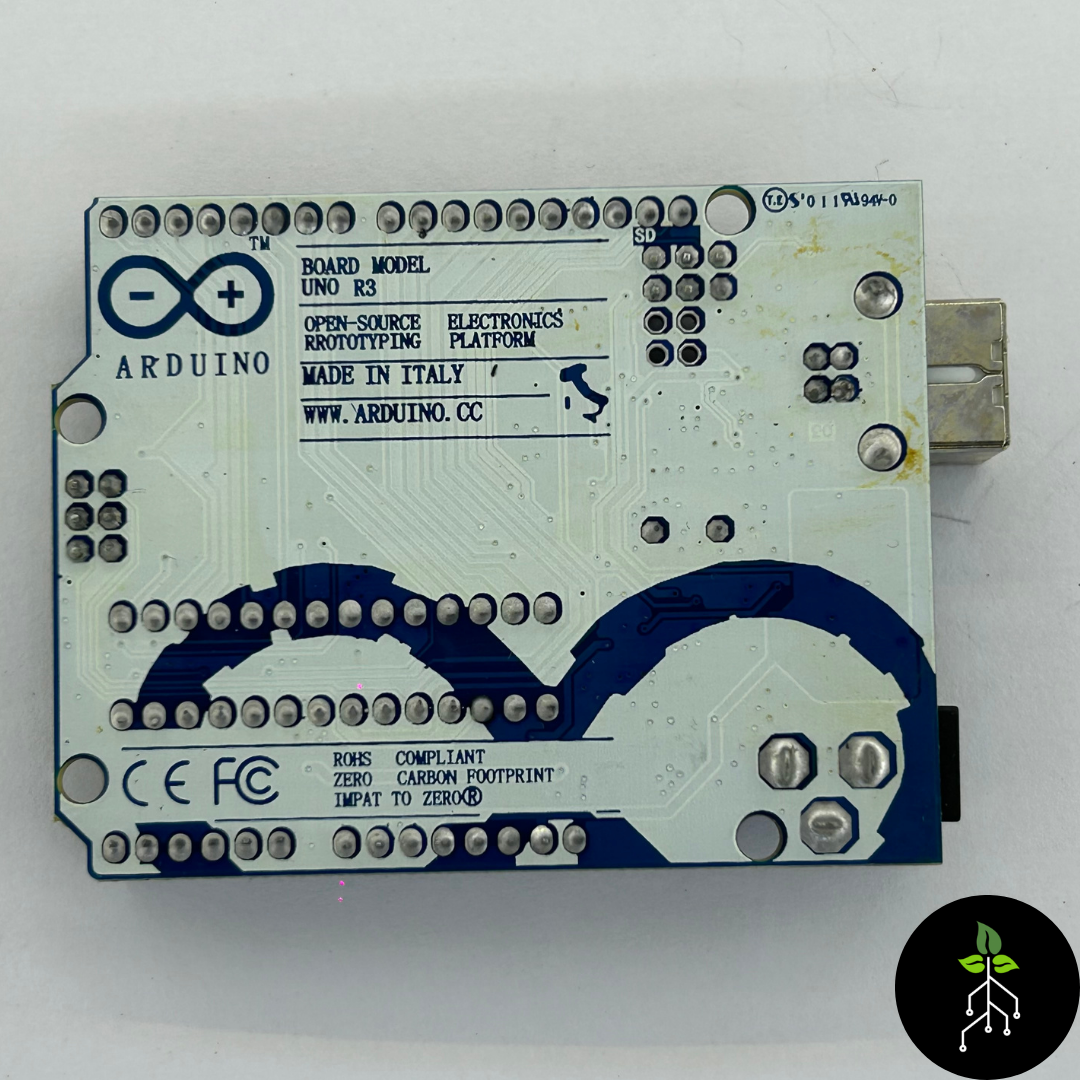

UNO R3 Development Board ATmega328- DIP Version

• ✅ Microcontroller: Based on ATmega328P (DIP version) – easy to replace or upgrade

• ✅ 14 Digital I/O Pins: 6 of which can be used as PWM outputs, UNO R3 Development Board

• ✅ 6 Analog Input Pins: Great for sensors, voltmeters, and more

• ✅ Clock Speed: 16 MHz ceramic resonator ensures stable performance

• ✅ Onboard Features: Includes voltage regulator (LDO), reset button, ICSP header, and LED indicators (L, TX, RX)

• ✅ Power Options: Can be powered via USB (not included), external power jack (7-12V recommended), or battery

• ✅ Memory: 32KB Flash (0.5 KB used by bootloader), 2KB SRAM, 1KB EEPROM

• ✅ Current Handling: 40mA per I/O pin, 50mA max for 3.3V pin. UNO R3 Development Board

• ✅ Dimensions: 75mm x 54mm x 12mm – fits standard Arduino enclosures

• ✅ Compatibility: Fully compatible with Arduino IDE, sensors, and shields

• ✅ Use Cases: Perfect for embedded systems, robotics, data logging, automation, and school/college electronics projects
